GHOST

GHOST, developed by the company BACKLIGHT, is an innovative solution of custom-made light panels.

These panels are unique in being completely transparent like glass when turned off, allowing for clear vision through them and letting light pass freely.

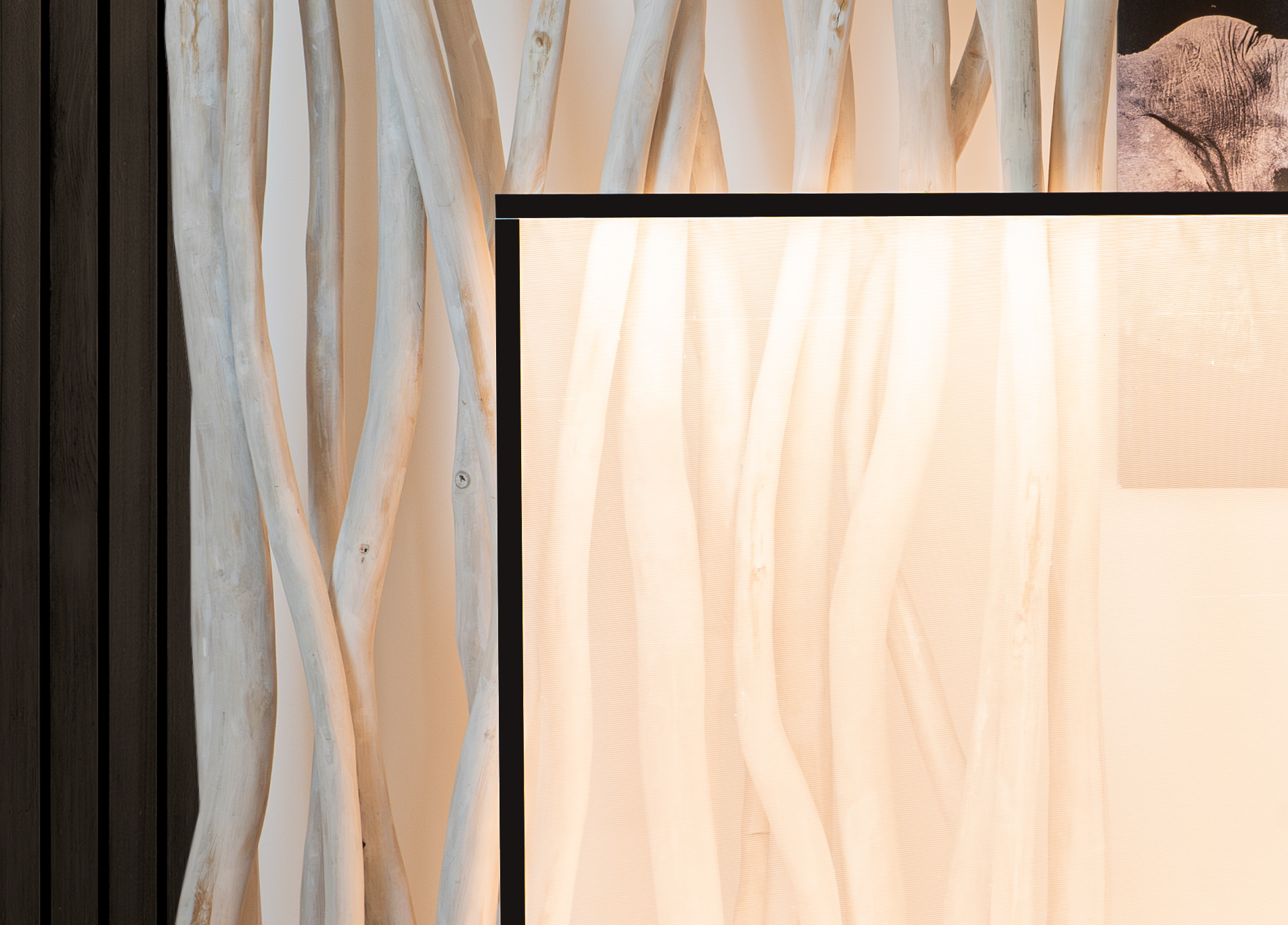

However, when the GHOST panel is turned on, it lights up uniformly on both sides, creating a dimming effect that transforms the view through it into barely outlined shapes.

 It is possible to order GHOST panels in different Kelvin, including tunable white, RGB, and DIM to WARM.

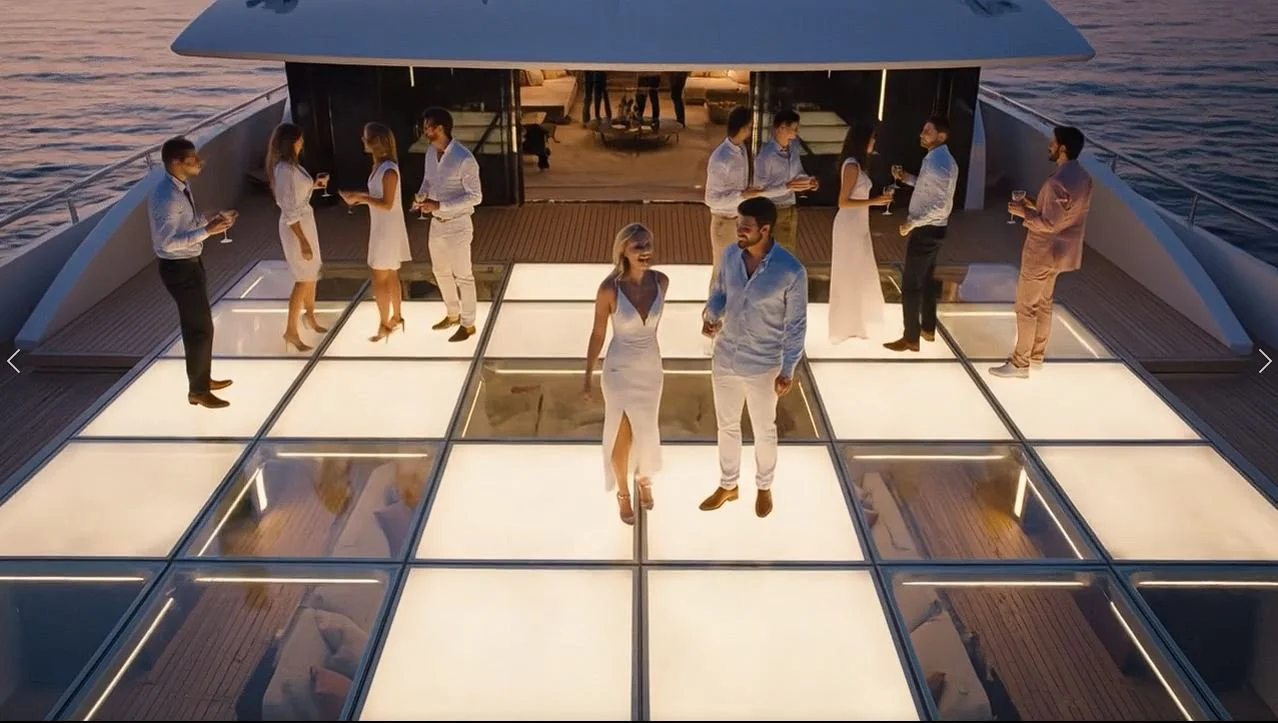

 The main applications of GHOST include creating faux skylights, partition panels, and general decorations.

This product offers an elegant and aesthetically pleasing solution to transform spaces, creating a unique and surprising atmosphere while providing the flexibility to adapt to a wide range of environments and design styles.

Technical
specs

  • Aluminium

    PMMA Glossy finish

    LED PCB

  • Custom Width:

    from 1 FT to 4 FT
    from 304,8 mm to 1219,2 mm

    Custom Length:

    from 1 FT to 10 FT
    from 304,8 mm to 3048 mm

  • EMISSION DIFFUSED

    KELVIN 2000K-2700K-3000K-3500K-4100K-5000K

    DIM to Warm

    TUN W (1800K to 3200K / 3 wires)
    TUN W (2400K to 4100K / 3 wires)

    RGB

    LUMENS

    CRI>95

  • INPUT 24VDC

    POWER CONS.

    4.5 W/mt - 14 W/ft) of perimeter

    DRIVER

    AC DC 24V DC OUTPUT (class 2 Power Unit)

    DIMMABILITY

    No dimming
    0-10V
    Dali
    DMX
    ELV/MLV
    Lutron Ecosystem

IP RATING

IP40 ( Dry Location)
IP54 ( Damp Location) under request

IK RATING
IK10

LIFE TIME
70.000 hrs

WARRANTY
3 Years (36 months)

Ceiling surface Mounted
Ceiling recessed Type IC Inherently protected
Wall surface Mounted
Storage Area of a Clothes Closet

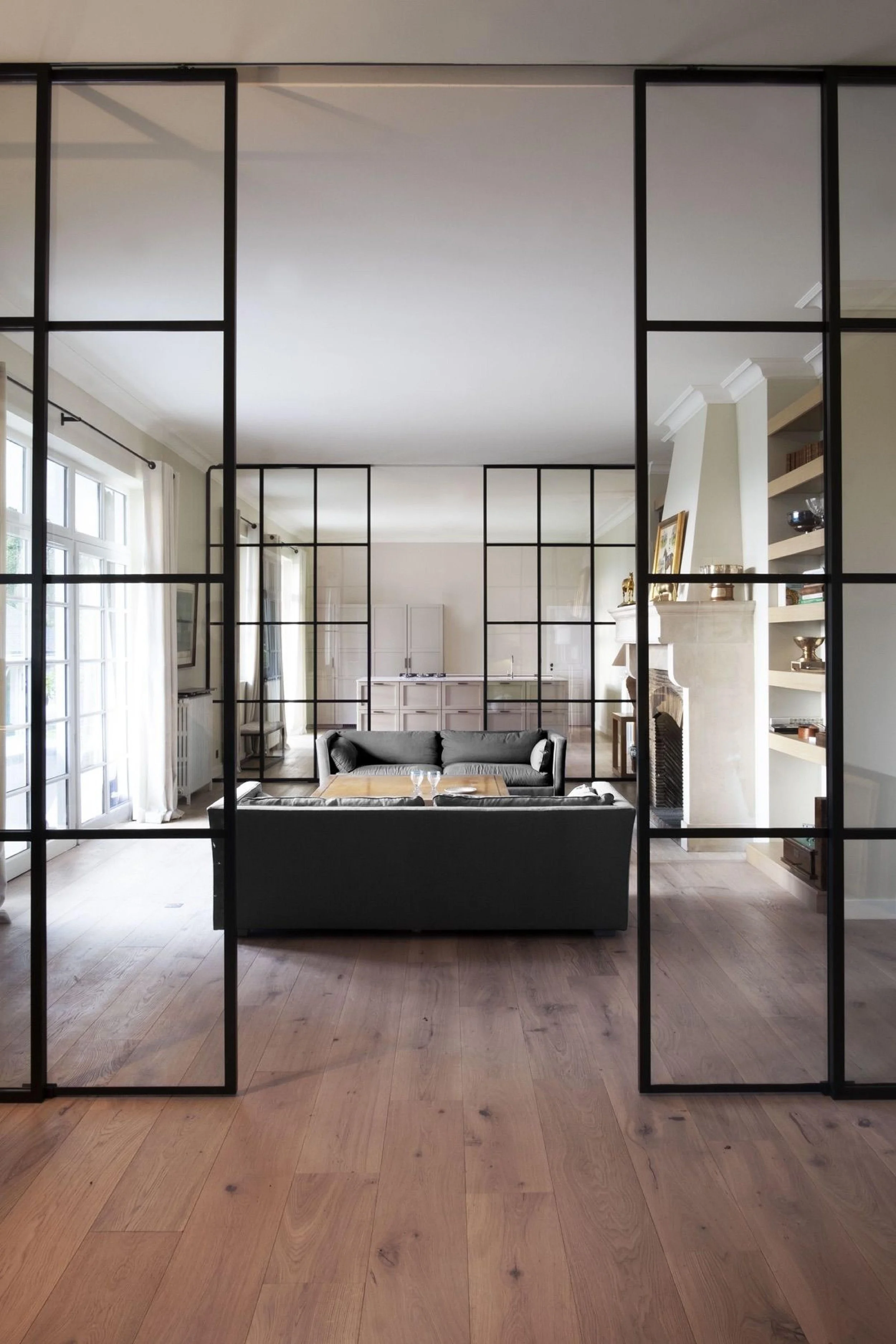

OFF

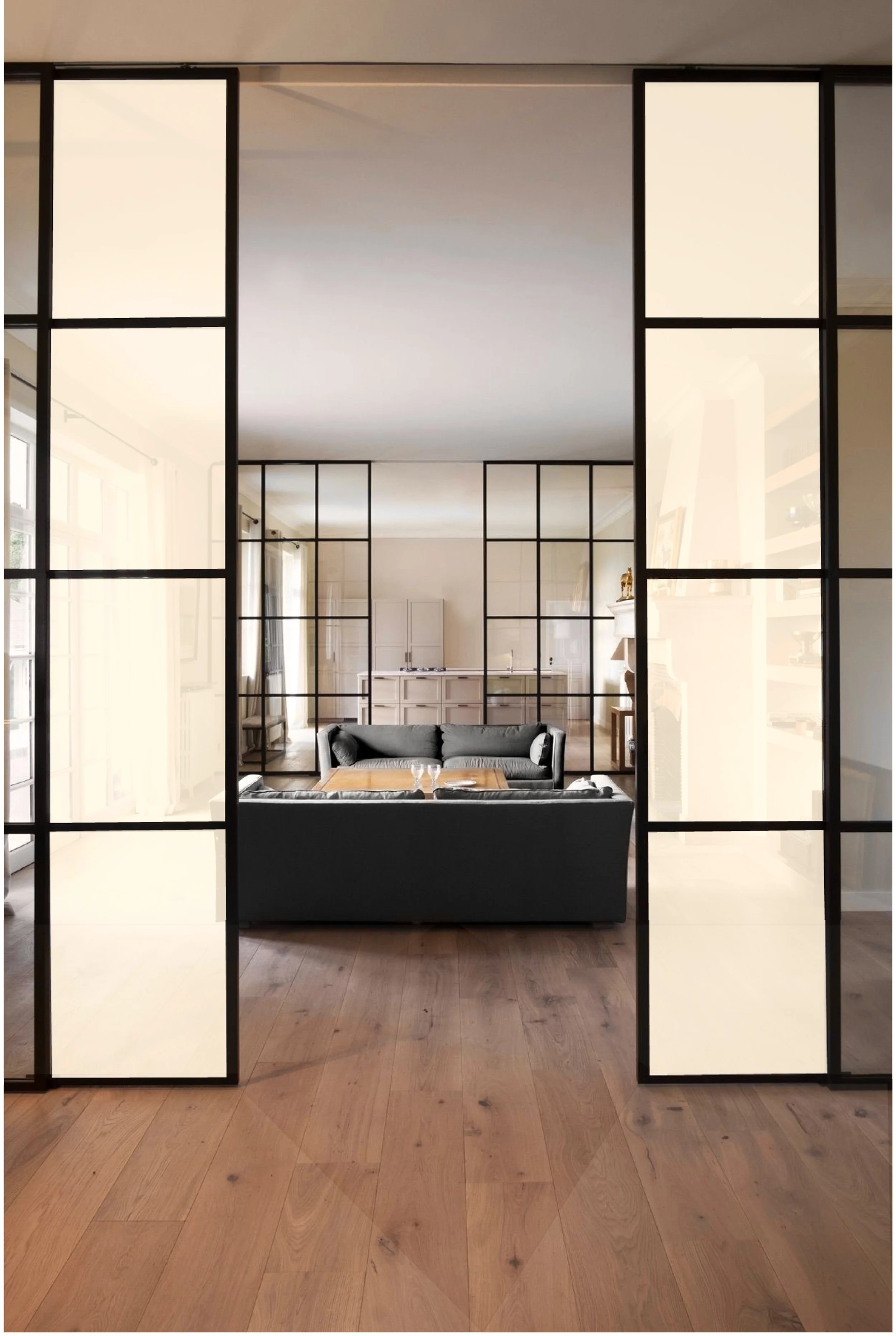

ON

ON

OFF
