Hide

UNIFORM LIGHTING CIRCLES

HIDE is an innovative lighting line that offers uniform and indirect circular lighting, available in three standard diameters but also customizable for minimum quantities of 50 units.

This lighting system is designed to be installed on both walls and ceilings and can be surface mounted or integrated into square drywall, making the job of drywall installers easier since, in the case of drywall, HIDE comes integrated with its own square drywall.

What truly sets the HIDE system apart is its ability to emit light from the entire surface without a frame, creating a magical effect that cannot be found in any other product on the market. The uniform and indirect lighting creates a warm and relaxing environment, without sacrificing lighting performance.

However, it is not just the quality of the light that makes HIDE special.

The innovative installation system makes it easy to install, even though it requires specialized installers. Additionally, it is available in various color temperatures and multicolor options, including the increasingly popular DIM to WARM.

Technical
specs

  • Aluminium White RAL 9010(Custom RAL under request)

    PMMA ( Acrylic) Satin Anti-Reflective
    (Gloss under request)

    LED PCB

  • Ø 18" - 457.2 mm
    Ø 24" - 609.6 mm
    Ø 30" - 762.0 mm
    Ø 36" - 914.4 mm

    WEIGHT

    5.7 lbs/sq. ft (25 kg/sq. mt)

  • EMISSION DIFFUSED

    KELVIN 2000K-3000K-3500K-4100K-5000K
    TW 2000 to 6500K
    TW 2700 to 6500K
    RGB

    CRI>95

    LUMENS

    Ø 18" - 457.2 mm | 1330 lm delivered
    Ø 24" - 609.6 mm | 1710 lm delivered
    Ø 30" - 762.0 mm | 2160 lm delivered
    Ø 36" - 914.4 mm | 2600 lm delivered

    MacAdam 3 Step

  • INPUT 24VDC

    POWER CONS

    Ø 18" - 457.2 mm | 21W
    Ø 24" - 609.6 mm | 27W
    Ø 30" - 762.0 mm | 34W
    Ø 36" - 914.4 mm | 41W

    DRIVER

    AC DC 24V DC OUTPUT
    (class 2 Power Unit)

    DIMMABILITY

    0-10V, Dali, DMX, ELV/MLV, Lutron Ecosystem, other systems under request

IP RATING

IP40 ( Dry Location)
IP54 ( Damp Location) under request

IK RATING
IK10

LIFE TIME
70.000 hrs

WARRANTY
3 Years (36 months)

Ceiling surface Mounted

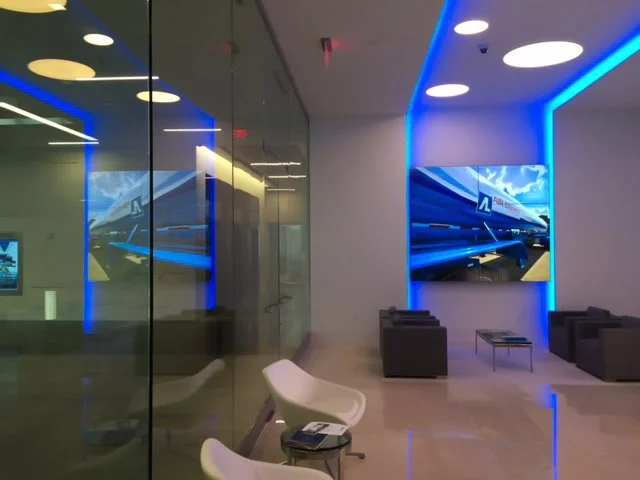

Ceiling recessed Type IC Inherently protected
Wall surface Mounted
Storage Area of a Clothes Closet

Brochure


Datasheet
