HALO

UNIFORM LIGHTING FRAME

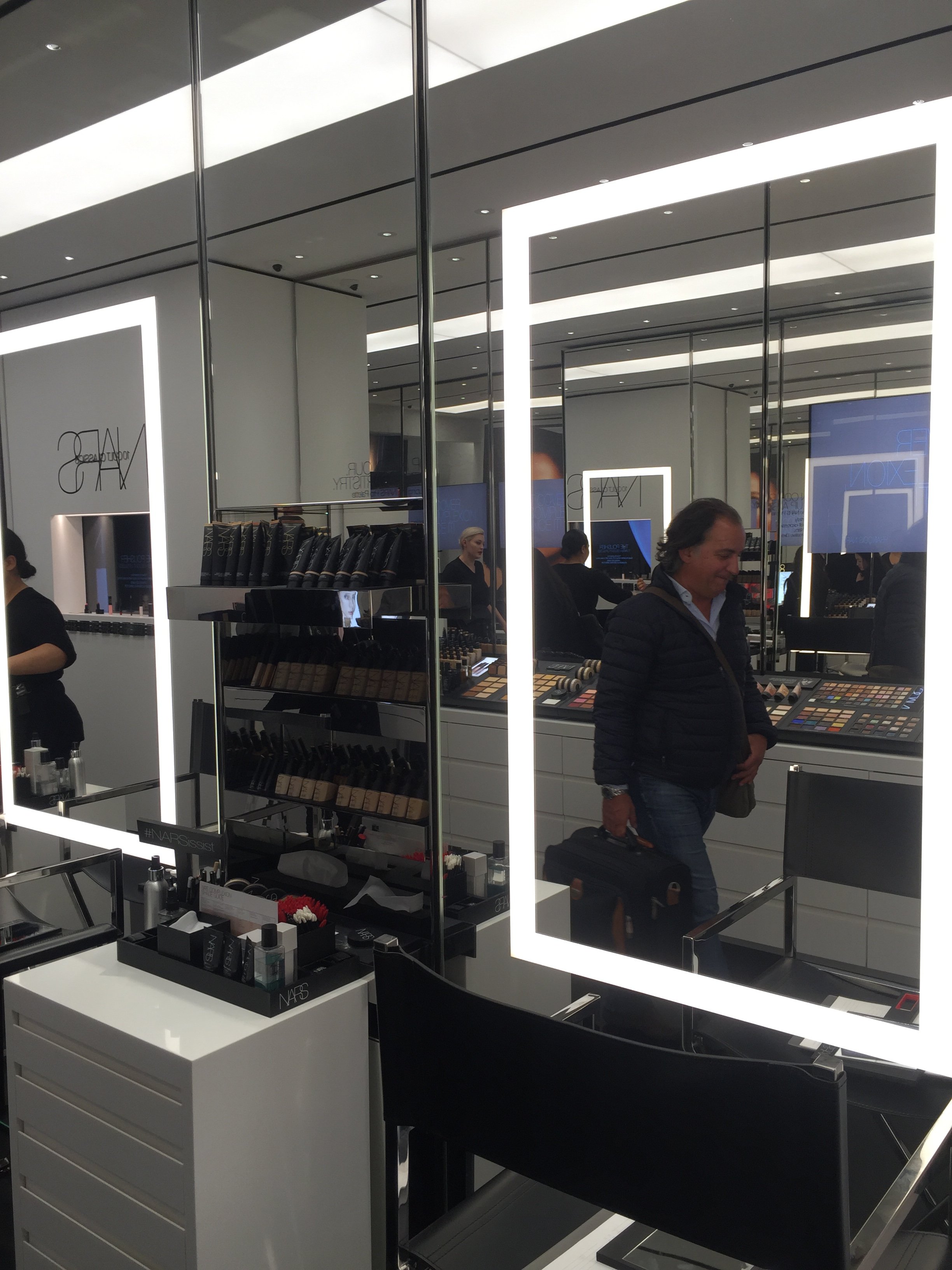

The Backlight HALO line is a versatile and elegant lighting solution designed to create a perimeter lighting effect. Its main uses include lighting around mirrors, elevator lighting, and more generally, can be installed on both walls and ceilings, as well as used as suspensions.

These lamps are produced in a single, custom-made piece, with the possibility of being made in irregular shapes.

The lamps in the HALO line stand out from other similar products for their construction that avoids the visibility of common joints normally present at the corners.

Thanks to this, HALO guarantees perfect light uniformity and an impeccable result.

It is possible to choose the color temperature of the light among various available options, customizing the light according to design needs and creating a perfect atmosphere for every occasion.

Technical
specs

  • Aluminium White RAL 9010
    (Custom RAL under request)

    PMMA ( Acrylic) Satin Anti-Reflective(
    Gloss under request)

    LED PCB

  • SHORT SIDE

    MM 203.2 to 2006.6 mm
    INCHES
    8.0 to 79.0 in

    LONG SIDE

    MM 1101.6 to 3048.0 mm
    INCHES 4.0 to 120.0 in

    WIDTH OF LIGHT

    15.24 mm (0.6")
    25.4 mm (1")
    30.48 mm (1.2")
    35.56 mm (1.4")
    40.64 mm (1.6")
    50.8 mm (2")
    76.2 mm (3")
    101.6 mm (4")
    152.4 mm (6")
    203.2 mm (8")

    THICKNESS

    MM 20.0 mm IN 0.79 in
    (depending on the scope of work)

  • EMISSION DIFFUSED

    KELVIN 2000K-3000K-3500K-4100K-5000K-TW 2000 to 6500K- TW 2700 to 6500K
    RGB
    DIM to Warm
    RGBW
    RGBTW

    LUMENS

    Standard bright 890 lm per linear meter (280 lm per linear ft) - High bright 1632 lm per linear meter (570 lm per linear ft)

    CRI>95

    R9>90

    MacAdam 3 Step

  • INPUT 24VDC

    POWER CONS.

    Standard bright (14 W/mt - 4.5 W/ft) - High bright (28 W/mt - 9 W/ft)

    DRIVER

    AC DC 24V DC OUTPUT (class 2 Power Unit)

    DIMMABILIT

    Y
    0-10V, Dali, DMX, ELV/MLV, Lutron Ecosystem, other systems under request

IP RATING

IP40 ( Dry Location)
IP54 ( Damp Location) under request

IK RATING
IK10

LIFE TIME
70.000 hrs

WARRANTY
3 Years (36 months)

Ceiling surface Mounted
Ceiling recessed Type IC Inherently protected
Wall surface Mounted
Storage Area of a Clothes Closet

Possible extra works

Holes on surface under drawing
